Commercial Greenhouses
With over 35 years & over 6 million square footage of construction experience, KBW Greenhouse Crew can assist you in your Greenhouse project. At KBW our Mission is to provide solutions that ensure the success of our customers. Our standard commercial Greenhouse is a 30’ Quonset style house. You can count on the KBW Crew to build a Solid, Functional, & Quality structure.
If you want to place a quote contact Martin in the North Texas area or JD in the South Texas area.

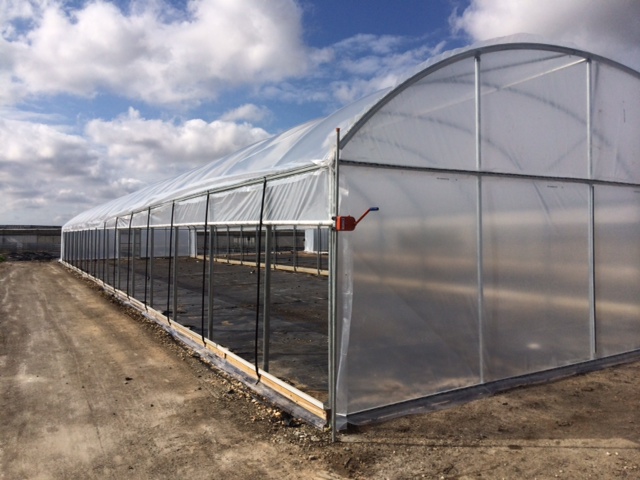

30’ & 21’ Wide Greenhouse – Frame Only
Standard Width: 30’
Standard Length: Multiples of 4’ and 6’ increments. For maximum use of polyethylene, we recommend 48’ and 96’
lengths be considered.
Standard side wall heights: 6’, 8’, 10’
Standard Ridge Height: 7’ above side wall height
Standard Frame Components: Side Wall Posts: 2-3/8” OD 13 GA.
Bows: 1.90” OD 14 GA
Purlins & Braces: 1-3/8” OD 18 GA.
Optional Width: 21’
Standard Length: Multiples of 4’ and 6’ increments. KBW Recommends 48’ and 96’ lengths be considered
Standard side wall heights: 6’, 8’, 10’
Standard Ridge Height: 3’6” above side wall height
Standard Frame Components: Side Wall Posts: 1.90” 14 GA.
Bows: 1-5/8” 16 GA.
Purlins & Braces: 1-3/8” 18 GA.

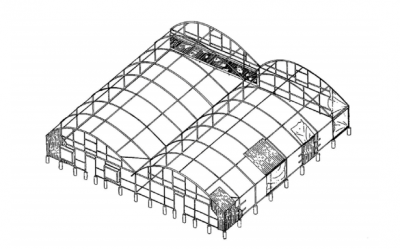

Standard Gutter Connected Green House Frame
Standard Width: 30’
Standard Length: Multiples of 4’ and 6’ increments. For maximum use of polyethylene, we recommend 48’ and 96’ lengths be considered.
Standard side wall heights: 6’, 8’, 10’
Standard Ridge Height: 7’ above side wall height
Standard Frame Components: Side Wall Posts: 2-3/8” OD 13 GA.
Bows: 1.90” OD 14 GA
Purlins & Braces: 1-3/8” OD 18 GA.
Optional Width: 21’
Standard Length: Multiples of 4’ and 6’ increments. KBW Recommends 48’ and 96’ lengths be considered
Standard side wall heights: 6’, 8’, 10’
Standard Ridge Height: 30’ wide – 7’6” above side wall height
Standard Frame Components:
Side Wall Posts: 2-3/8” OD 13 GA.
Bows & End Wall Posts: 1.90” OD 14 GA
Purlins & Braces: 1-3/8” OD 18 GA.
Commercial Greenhouse Series
Steel Specifications
Side Wall Posts – 2 3/8-13 GA.
Bows & End Wall Post – 2”-14 GA.
Purlins & Braces – 1 3/8-18 GA
Made in the USA – Gatorshield Triple
Zinc Flo Coating inside & out to prevent
rust and corrosion
Standard Widths
16’ W / 18’ W / 21’ W / 30’ W
Lengths in Multiples of4’ or 6’
Custom sizes available upon request
Optional Components
End Wall Frames
Roll-up Curtains
Trusses
Vestibules
Fan Walls
Insect Screen/ABug Proofing
Cooling Walls
Features
Multiple Door Styles & Sizes /
Swing Open or Slide Open
4’ & 5’ widths in Single Doors
8’ & 10’ widths in Double Doors
Heights for 7’6”” and up
Aluminum Gutters
Wide & easy to walk
on 1/8’ Think 11GA
Accepts all coverings
Services
Repair & Refurbish existing
Greenhouses
Install Plastic Film Roof
Replace Polycarbonate
Panels
Repair tears etc.
